MF-8
MF Series

MF-8

8-Inch Two-Way Full-Range Loudspeaker

The MF-8 is an 8-inch two-way full-range loudspeaker featuring one 8-inch LF driver and one 1-inch HF driver. It combines a 75 Hz–20 kHz frequency response (±3 dB) with 90° horizontal × 50° vertical coverage. Power handling is rated at 250 W AES and 1000 W peak, with a nominal impedance of 8 Ω.

Max SPL
120 dB
Response
75 Hz–20 kHz
Weight
11 kg
Request a Quote Download Datasheet

Project support · System presets included · Shipping worldwide

Features

  • Two-way full-range design with one 8-inch LF driver and one 1-inch HF driver
  • 250 W AES power handling and 1000 W peak power handling
  • 75 Hz–20 kHz frequency response (±3 dB)
  • 90° horizontal × 50° vertical coverage
  • 8 Ω nominal impedance; HP95 horn; 2.5 kHz crossover
  • Two Speakon NL4 connectors
  • 2 mm steel grille with internal dust-filter foam
  • Black finish, with other colours available; optional U-shaped and T-shaped mounting brackets

Product Details

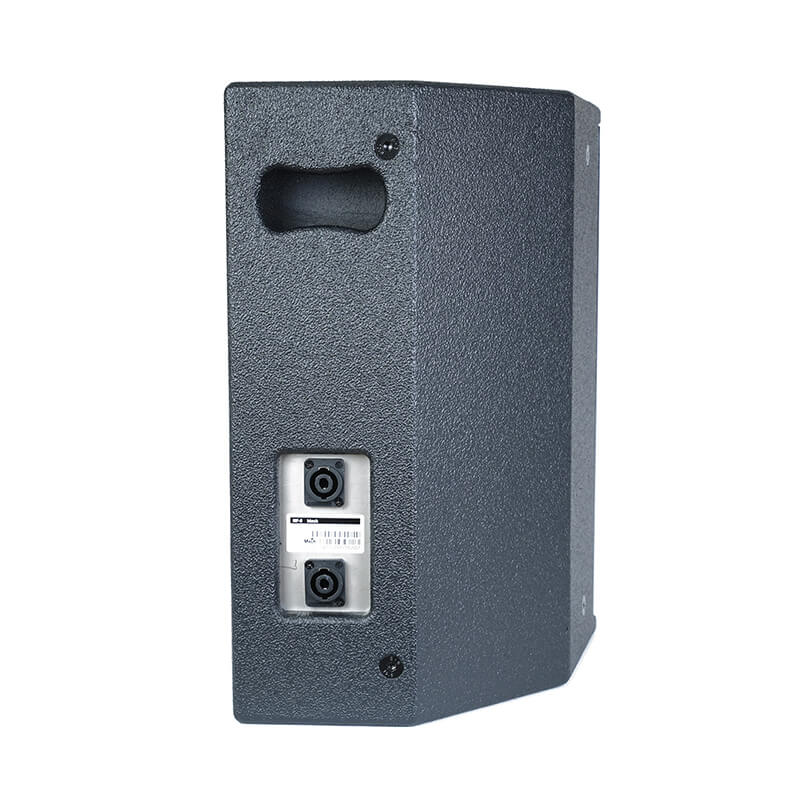

The MF-8 uses an HP95 horn and a 2.5 kHz crossover. The enclosure is finished in black, with other colours available, and the drivers are protected by a 2 mm steel grille with internal dust-filter foam. Two Speakon NL4 connectors are provided on the rear panel. The loudspeaker weighs 11 kg. A user manual is included; U-shaped and T-shaped mounting brackets are available as optional accessories.

MF-8 — Technical Specifications
Model MF-8
Type 8-inch two-way full-range loudspeaker
Power Rating (AES) 250 W
Peak Power Rating 1000 W
Sensitivity (1 W / 1 m) 94 dB
Maximum SPL, Calculated Long Term 114 dB
Maximum SPL, Peak 120 dB
Frequency Response (±3 dB) 75 Hz – 20 kHz
Dispersion 90° horizontal × 50° vertical
Nominal Impedance 8 Ω
HF Driver 1 × 1-inch
LF Driver 1 × 8-inch
Crossover Frequency 2.5 kHz
Horn HP95
Net Weight 11 kg
Finish Black finish; other colours available
Grille 2 mm steel grille with internal dust-filter foam
Input Connectors 2 × Speakon NL4
Included Item User manual
Optional Accessories U-shaped mounting bracket; T-shaped mounting bracket

Maximum SPL figures are manufacturer-specified values.

Accessories

Included
User manual
Optional
U-shaped mounting bracket; T-shaped mounting bracket
